Axial Thread Rolling Heads
For Right Hand Threads
For Stationary Applications
* For short threads up to 0.945" length including thread run-out.

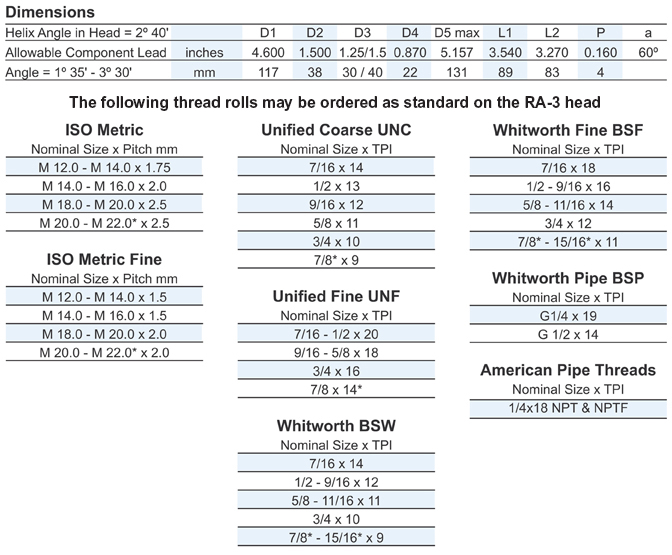

Threads outside of the above standard series may also be rolled on this head provided that their helix does not fall outside the permissible range.
Left hand threads are dimensionally the same as right hand heads but open and close on the opposite direction. Thread rolls can be used in both right hand and left hand heads. See "Assembling Rolls Into Head" in the Axial Operation Section (Click Here).
