RE-13 Radial Head

Radial Thread Rolling Heads
Standard Shank Style Illustrated
Flange Mounting Also Available

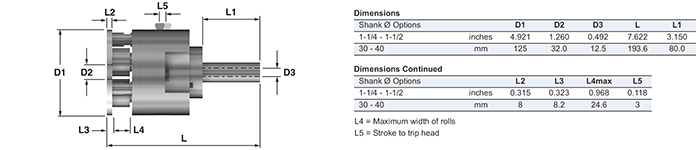

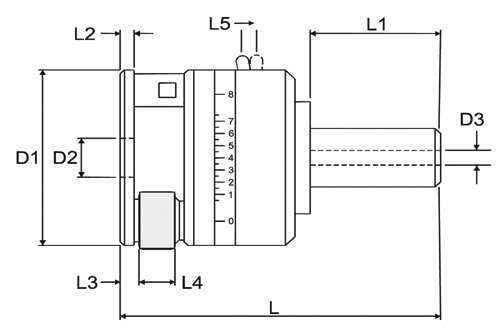

RSVP Tooling, Inc. - Radial Thread Rolling System - RE-13 Eng View
L4 = Maximum width of rolls
L5 = Stroke to trip head

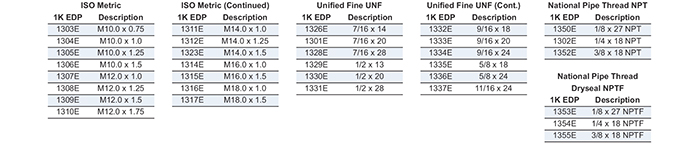

RSVP Tooling, Inc. - Radial Thread Rolling System - RE-13 Eng View Chart

The range of sizes shown can normally be safely rolled on the RE-13 head. For thread forms other than those listed, please contact our technical department.

Thread rolls are supplied as standard to suit right hand heads. This refers to the direction of rotation of the spindle and not the thread itself. Both right and left hand threads can be rolled using the same head; only the rolls are changed.
