RA-1 - Axial Head
Axial Thread Rolling Heads For Right Hand Threads For Stationary Applications

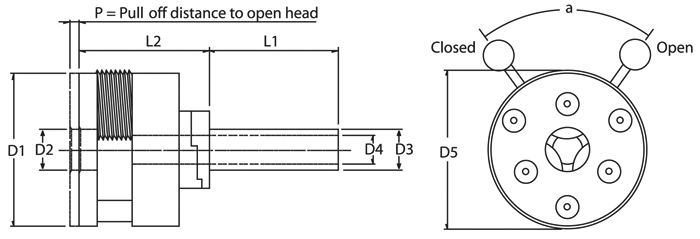

RSVP Tooling, Inc. - Axial Thread Rolling System - A1 - Overview & Components Eng View Chart

Threads outside of the above standard series may also be rolled on this head provided that their helix does not fall outside the permissible range.

Left hand threads are dimensionally the same as right hand heads but open and close on the opposite direction. Thread rolls can be used in both right hand and left hand heads. See "Assembling Rolls Into Head" in the Axial Operation Section (Click Here).

For specific thread lead angles, please refer to the helix chart (Click Here).
