Accu-Screw™ - Holders & Receivers

For Davenports, Brown & Sharp or Swiss Style Machines

Quick-Change Drilling For Screw Machines

•

Designed for use on Davenport , Brown & Sharpe and Swiss Style Machines

•

5-10 Second tool change with no tools needed for insertion

•

Preset drills offline for maximum accuracy and minimum downtime

•

Uses ER single angle collets - dramatic improvement over double angle collets

•

Repeatable - .0005 TIR at 4"

•

Set tool block or receiver one time and change tools with no additional setup time

•

Your first part is a good part! – reduce scrap, eliminate setups, save time & money

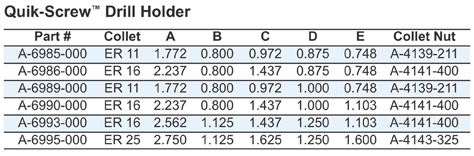

RSVP Tooling, Inc. - Specialty Tools - Accu-Screw - Holders & Receivers - For Davenports, Brown & Sharp or Swiss Style Machines Quik-Screw Drill Holder Eng View RSVP Tooling, Inc. - Specialty Tools - Accu-Screw - Holders & Receivers - For Davenports, Brown & Sharp or Swiss Style Machines Quik-Screw Drill Holder Eng Chart

•

Holder has a positive stop screw and is coolant thru capable.

•

Preset offline and insert into receiver (see below) using no tools for insertion, and flat wrench on hex for removal.

•

ER single angle collets are far more accurate than double angle collets, producing better parts and longer tool life.

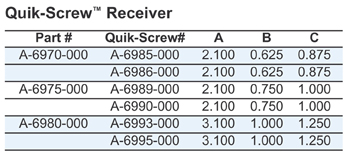

RSVP Tooling, Inc. - Specialty Tools - Accu-Screw - Holders & Receivers - For Davenports, Brown & Sharp or Swiss Style Machines Quik-Screw Receiver Eng View RSVP Tooling, Inc. - Specialty Tools - Accu-Screw - Holders & Receivers - For Davenports, Brown & Sharp or Swiss Style Machines Quik-Screw Receiver Chart

•

Receiver is positioned and centered in machine tool block for initial tool setup

•

Holders are preset offline eliminating additional downtime
